• GO/±NG judgment is performed by setting the upper and lower tolerances for max., min. and runout values
• Internal calculations using the simple formula of [F(x)=Ax)] are available
• Large, easy-to-read LCD
• Pack of 1 EA
• Manufacturer part number: 543-472B
• UPC Code: Unavailable

Specifications:

• Accuracy = 0.00012 in; .0001 in
• Batt. Life = Average 5,000 Hours
• Display Diam = 60.5 mm
• Display Type = Digital LCD; SPC Output
• Graduation(s) = .0005 in; .0001 in; .00005 in
• Height [Nom] = 2.56 in
• Length [Nom] = 10.2 in
• Measuring Force [Max] = 1.800 N
• Measuring System = Inch/Metric

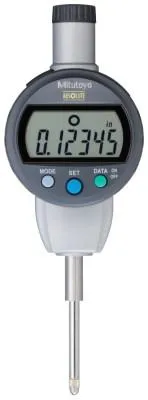

• Model = ID-C125EXB
• Mounting = Stem; Flat
• Operating Type = Digimatic
• Output = Yes
• Range [Max] = 1 in
• Range [Min] = 0 in
• Resolution (Length) = 0.00005 in
• Stem Diam = 3/8 in
• Thread Point @ TPI or Pitch = 0.112 in #4 @ 48.000 UNF
• Tip Material = Carbide
• Type = ID-C; Standard Type
• Width [Nom] = 4.12 in
• Wt. = 0.66 lb
• This is a normal stocking item.
